Wuhan Gemei Joint Technology Co., Ltd. Profil Perusahaan

Produk

Rumah > Produk > Mesin pemotong digital CNC > Round Knife Oscillation Knife CNC Digital Cutter with 1825 Cutting Area Lathe Cutter

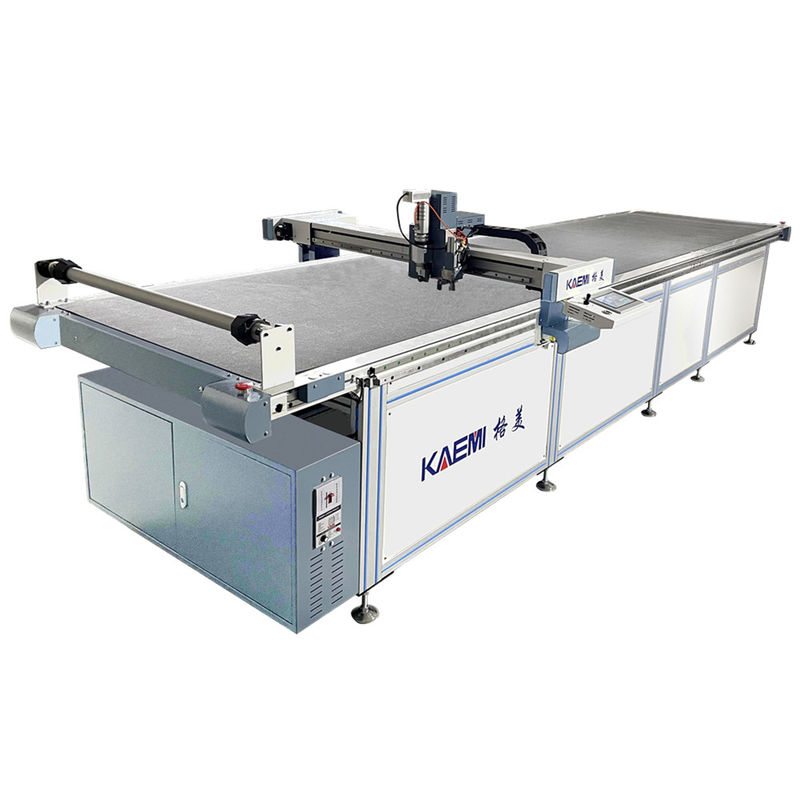

Round Knife Oscillation Knife CNC Digital Cutter with 1825 Cutting Area Lathe Cutter

Name: Round Knife Oscillation Knife CNC Digital Cutter with 1825 Cutting Area Lathe Cutter
Brand: Wuhan Gemei Joint Technology Co., Ltd.
Availability: InStock

Rincian produk

Tempat asal: Hubei, Tiongkok

Nama merek: KAEMI or GM

Syarat Pembayaran & Pengiriman

Harga: $15,000.00/sets 1-2 sets

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:

Kondisi:	Baru	Industri yang berlaku:	Hotel, Toko Pakaian, Pabrik Manufaktur, Bengkel Mesin, Ritel, Toko Percetakan, Perusahaan Periklanan
Berat (Kg):	400	Lokasi Showroom:	Vietnam
Inspeksi video keluar:	Disediakan	Laporan pengujian mesin:	Disediakan
Jenis pemasaran:	Produk Baru 2020	Garansi komponen inti:	2 tahun
Komponen Inti:	Mesin, Motor, Driver dan Motherboard	Jaminan:	1 Tahun, Untuk Seluruh Mesin
Nama produk:	Pisau Bulat Pisau Osilasi Pemotong Digital CNC 1825 Pemotong	Rangka dan Casing Mesin Pemotong:	Bingkai Biru + Kotak Perak
Bahan mesin:	Semua Countertops Aluminium	Memotong bahan:	Kertas Putih, Kraft, Papan Plastik, Papan Serat, dll.
Alat Potong:	Kotak Tinta HP45, Pisau Baja Tungsten	Ruang Lingkup Pemotongan:	2500 * 1800mm
Ketebalan pemotongan:	≤35mm	Kecepatan memotong:	100-1200mm/detik
Ukuran Mesin Pemotong:	Ukuran 342025501220mm

Kondisi:	Baru
Industri yang berlaku:	Hotel, Toko Pakaian, Pabrik Manufaktur, Bengkel Mesin, Ritel, Toko Percetakan, Perusahaan Periklanan
Berat (Kg):	400
Lokasi Showroom:	Vietnam
Inspeksi video keluar:	Disediakan
Laporan pengujian mesin:	Disediakan
Jenis pemasaran:	Produk Baru 2020
Garansi komponen inti:	2 tahun
Komponen Inti:	Mesin, Motor, Driver dan Motherboard
Jaminan:	1 Tahun, Untuk Seluruh Mesin
Nama produk:	Pisau Bulat Pisau Osilasi Pemotong Digital CNC 1825 Pemotong
Rangka dan Casing Mesin Pemotong:	Bingkai Biru + Kotak Perak
Bahan mesin:	Semua Countertops Aluminium
Memotong bahan:	Kertas Putih, Kraft, Papan Plastik, Papan Serat, dll.
Alat Potong:	Kotak Tinta HP45, Pisau Baja Tungsten
Ruang Lingkup Pemotongan:	2500 * 1800mm
Ketebalan pemotongan:	≤35mm
Kecepatan memotong:	100-1200mm/detik
Ukuran Mesin Pemotong:	Ukuran 342025501220mm

Deskripsi Produk

Round Knife Oscillation Knife CNC Digital Cutter 1825 Cutting Area Lathe Cutter

Product Description

Main Features

1. Continuous Feeding System 2.Independent Operator-Touch Screen Control 3.Various Scissors/Punching Devices 4.Digital Image Cutting Positioning System 5.Mordular Partition Table and All-alumnium Profile Fuselage 6.Imported Servo Motor/Drive System 7.Remote Wireless Remote Control Operating System 8.Intelligent Suction Zoning System

Model	GM-2516DK5	GM-2518DK5	GM3016DK5
Cutting Window(Fabric Scope)	2500*1600mm	2500*1800mm	3000*1600mm
Overall Dimension(mm)	342023501220	342025501220	392023501220
Materials Fasten	Vacuum Adsorption
Max Cutting Thickness	≤35mm
Cutting Materials	Flexible Materials(Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board,Various Fiber Composite Materials, etc
Cutting Speed	100mm~1200mm/s (Speed Varies According to Cutting Materials)
Pen Type/Knife Type	Milling Cutter, Nicking Tool, Drill, Pen
Repeatability Precision	≤0.01mm
Communication Port	USB/RJ45 Ethernet, Shared Folder Print in LAN
Buffer Memory Size	1M/8M/32M(Can butter more than 1 page)
File Formats	DXF/HPGL/HPG/PLT Formats Compatible
Control Panel	Color Multilingual Touch Screen
Feeding Way	Roller and Crawler Feed Automatically
Supply Voltage	AC 220V/380V±10%, 50Hz
Fuse Value	30A/35A
Working Environment	Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation
Location Mode	Cross Laser, CCD Positioning
Power Consumption	The Control Part is 2.2KW/h, and the Vacuum Part is 2.2-7.5KW/h
Application Areas	Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting, etc

Company Profile

Wuhan Gemei Joint Technology Co., Ltd.

is located in the national economic development Zone - Wuhan Linkong economic development zone in the beautiful River City. It is a specialized company specializing in the research and development, production, sales and service of automation equipment for the industries of clothing,bags and shoes. The company shoulders the historical mission of "changing traditional industries with high technology", and is committed to providing CAM / CAD integrated solutions for garment,luggage,footwear and other enterprises. Gemei is also a high-tech enterprise and a software enterprise in Hubei Province, an "information port" certification enterprise and an entrepreneurship enterprise for overseas students in Wuhan City.

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Packing & Delivery

Exhibition

Certifications

FAQ

1. Q: Are you a manufacturer? A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years. 2. Q: How do you pack these products? A: Usually packed in wooden case and can pack according to export standard or your requirement. 3. Q: Is it customizable? A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements. 4.Q: After-sales service A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype 5.Q: What is your lead time? A: Spot goods usually take 2-4 days, and customization takes 5-7 days
